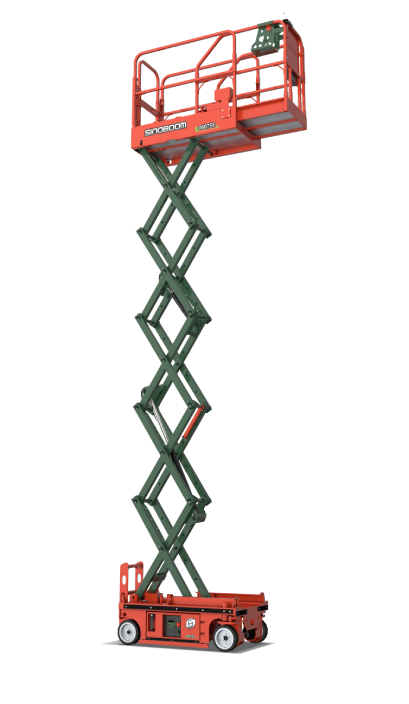

0607SE
Electric Series Scissor Lifts
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS
Dimensions
-
Max Working Height
7.6m (24'11") (Indoor) / 6.6m (21'8") (Outdoor) -
[A] Max Platform Height
5.6m (18'5") (Indoor) / 4.6m (15') (Outdoor) -
[B] Max Horizontal Extension
0.6m -
[C] Length-Stowed
1.52m -
[D] Width-Stowed
0.81m -
Height - stowed Rail Folded
1.77m -
[E] Height - stowed Rail Unfolded
2.1m -
Height - stowed Fixed Rail
2.1m -
[F] Wheelbase
1.13m -
Ground Clearance
(Pothole Guard Stowed)65mm -
Ground Clearance
(Pothole Guard Deployed)25mm -
Platform Dimensions(L×W×H)
1.37m×0.7m×1.1m
Performance
-
Platform Allowable Occupants
(Indoor/Outdoor)2 persons (Indoor) / 1 person (Outdoor) -
Platform capacity
230kg -
Lift Extension Capacity
120kg -
Drive Speed-Stowed
4km/h -
Drive Speed-Raised
0.8km/h -
Elevation Time(Unloaded)
24s~28s -
Descent Time(Unloaded)
22s~26s -
Gradeability
25% -
Turning Radius
(Inside/Outside)0.45m/1.6m -
Tilt Rating
(Front to Back/Side to Side)3°/1.5° -
Tyres-solid
255×76mm
Power
-
Batteries
12V×2/115Ah -
Power Source
24V DC -
Drive Mode
2WD×2WS -
Charger Input
100~240V AC -
Charger Output
15A -
Hydraulic System Capacity
4L
-
Weight(Indoor/Outdoor)
1,210kg -
Weight(Indoor Only)
- -
Standards Compliance
AS/NZS1418
Standard features
- 2WD×2WS
- Maintenance-free battery
- Non-marking tires
- Forklift pockets and lifting points
- Overload sensing system
- Foldable guardrail
- Drivable at full height
- Bumper rails
- Telematics-ready connector
Optional features
- AC power to platform
- Secondary guarding system
- White noise alarm
- Lockable battery isolator
- AC drive motor
