More reliable performance
Bumper rail protection -
Reduced maintenance costs
Rapid, convenient transportation with two-way forklift slot
Lower cost of ownership with highly versatile parts -
Efficient and environmentally friendly
Higher work efficiency
Environmental protection, zero emissions
0608ME

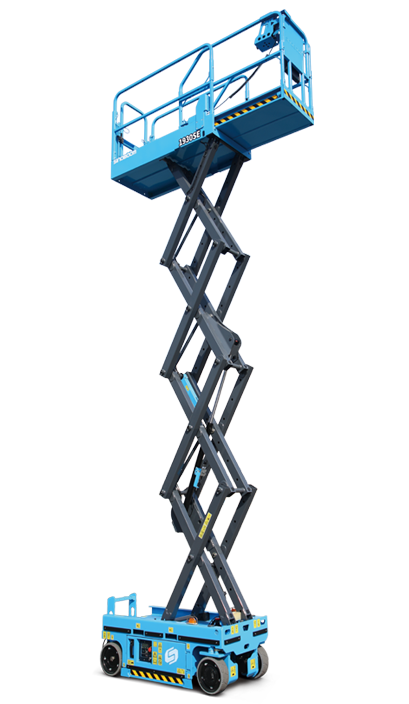

Electric Series Scissor Lifts
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS
Product Highlights
Dimensions
-
Max Working Height
7.8m (25'7") -
[A] Max Platform Height
5.8m (19') -
[B] Max Horizontal Extension
0.9m -
[C] Length-Stowed
1.8m -
[D] Width-Stowed
0.81m -
Height - stowed Rail Folded
1.88m -
[E] Height - stowed Rail Unfolded
2m -
Height - stowed Fixed Rail
- -
[F] Wheelbase
1.334m -
Ground Clearance
(Pothole Guard Stowed)75mm -
Ground Clearance
(Pothole Guard Deployed)24mm -
Platform Dimensions(L×W×H)
1.64m×0.76m×0.96m
Performance
-
Platform Allowable Occupants
(Indoor/Outdoor)2 persons/1 person -
Platform capacity
230kg -
Lift Extension Capacity
120kg -
Drive Speed-Stowed
4km/h -
Drive Speed-Raised
0.8km/h -
Elevation Time(Unloaded)
15s~20s -
Descent Time(Unloaded)
25s~30s -
Gradeability
25% -
Turning Radius
(Inside/Outside)0/1.49m -
Tilt Rating
(Front to Back/Side to Side)3°/1.5° -
Tyres-solid
323×100mm
Power
-
Batteries
6V×4/225Ah -
Power Source
24V DC -
Drive Mode
2WD×2WS -
Charger Input
100~240V AC -
Charger Output
30A -
Hydraulic System Capacity
6L
-
Weight(Indoor/Outdoor)
1,575kg -
Weight(Indoor Only)
-
Standards Compliance
AS/NZS
Standard features
- 2WD×2WS
- Maintenance-free battery
- Non-marking tires
- Forklift pockets and lifting points
- Overload sensing system
- Foldable guardrail
- Drivable at full height
- Bumper rails
- Telematics-ready connector
Optional features
- AC power to platform
- Secondary guarding system
- White noise alarm
- Lockable battery isolator
- AC drive motor
