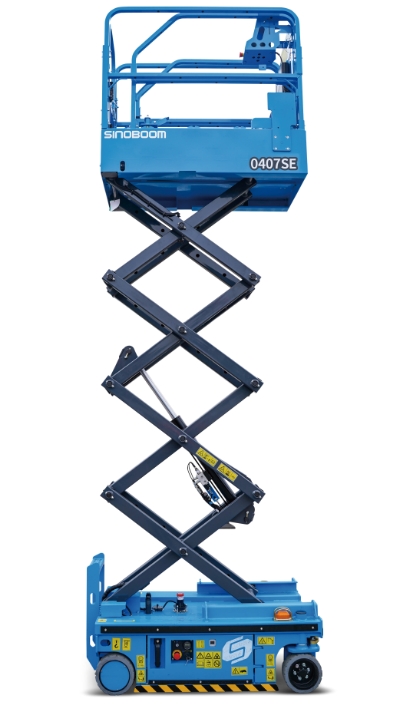

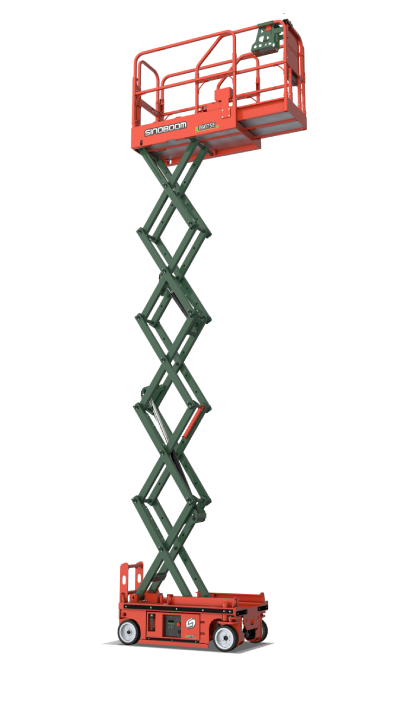

0407SE
Electric Series Scissor Lifts
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS
Dimensions
-
Max Working Height
6.5m (21'4") (Indoor) / 5.8m (19') (Outdoor) -
[A] Max Platform Height
4.5m (14'9") (Indoor) / 3.8m (12'6") (Outdoor) -
[B] Max Horizontal Extension
0.6m -
[C] Length-Stowed
1.42m -
[D] Width-Stowed
0.76m -
Height - stowed Rail Folded
1.67m -
[E] Height - stowed Rail Unfolded
1.97m -
Height - stowed Fixed Rail
1.97m -
[F] Wheelbase
1.11m -
Ground Clearance
(Pothole Guard Stowed)61mm -
Ground Clearance
(Pothole Guard Deployed)20mm -
Platform Dimensions(L×W×H)
1.34m×0.7m×1.1m
Performance
-
Platform Allowable Occupants
(Indoor/Outdoor)2 persons (Indoor) / 1 person (Outdoor) -
Platform capacity
240kg -
Lift Extension Capacity
115kg -
Drive Speed-Stowed
4km/h -
Drive Speed-Raised
0.8km/h -
Elevation Time(Unloaded)
20s~23s -
Descent Time(Unloaded)
25s~27s -
Gradeability
25% -
Turning Radius
(Inside/Outside)0.3m/1.35m -
Tilt Rating
(Front to Back/Side to Side)3°/1.5° -
Tyres-solid
255×76mm
Power
-
Batteries
12V×2/115Ah -
Power Source
24V DC -
Drive Mode
2WD×2WS -
Charger Input
100~240V AC -
Charger Output
15A -
Hydraulic System Capacity
4L
-
Weight(Indoor/Outdoor)
880kg -
Weight(Indoor Only)
- -
Standards Compliance
AS/NZS1418
Standard features
- 2WD×2WS
- Maintenance-free battery
- Non-marking tires
- Forklift pockets and lifting points
- Overload sensing system
- Foldable guardrail
- Drivable at full height
- Bumper rails
- Telematics-ready connector
Optional features
- AC power to platform
- Secondary guarding system
- White noise alarm
- Lockable battery isolator
- AC drive motor
