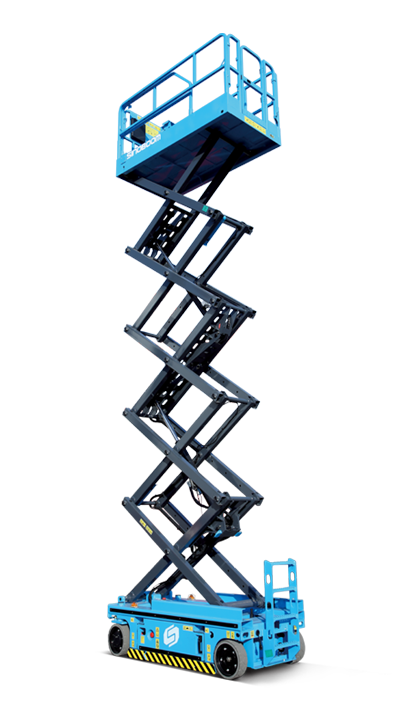

1012E
Electric Series Scissor Lifts
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS
Dimensions
-
Max Working Height
12m (39'4.5") -
[A] Max Platform Height
10m (32'10") -
[B] Max Horizontal Extension
0.9m -
[C] Length-Stowed
2.45m -
[D] Width-Stowed
1.17m -
Height - stowed Rail Folded
1.86m -
[E] Height - stowed Rail Unfolded
2.48m -
Height - stowed Fixed Rail
-
[F] Wheelbase
1.88m -
Ground Clearance
(Pothole Guard Stowed)0.1m -
Ground Clearance
(Pothole Guard Deployed)25mm -
Platform Dimensions(L×W×H)
2.30m×1.15m×1.1m
Performance
-
Platform Allowable Occupants
(Indoor/Outdoor)2 persons/1 person -
Platform capacity
320kg -
Lift Extension Capacity
-
Drive Speed-Stowed
4km/h -
Drive Speed-Raised
0.8km/h -
Elevation Time(Unloaded)
53s~58s -
Descent Time(Unloaded)
40s~45s -
Gradeability
25% -
Turning Radius
(Inside/Outside)0/2.35m -
Tilt Rating
(Front to Back/Side to Side)3°/1.5° -
Tyres-solid
380×125mm
Power
-
Batteries
6V×4/240Ah -
Power Source
24V DC -
Drive Mode
Motor, front-wheel -
Charger Input
100~240V AC -
Charger Output
30A -
Hydraulic System Capacity
34L
-
Weight(Indoor/Outdoor)
2,815kg -
Weight(Indoor Only)
-
Standards Compliance
AS/NZS1418
Standard features
- 2WD×2WS
- Maintenance-free battery
- Non-marking tires
- Forklift pockets and lifting points
- Overload sensing system
- Foldable guardrail
- Drivable at full height
- Bumper rails
- Telematics-ready connector
Optional features
- AC power to platform
- Secondary guarding system
- White noise alarm
- Lockable battery isolator
- AC drive motor
- Lithium Battery
