HOME>PRODUCTS>SCISSOR LIFT>1018RD

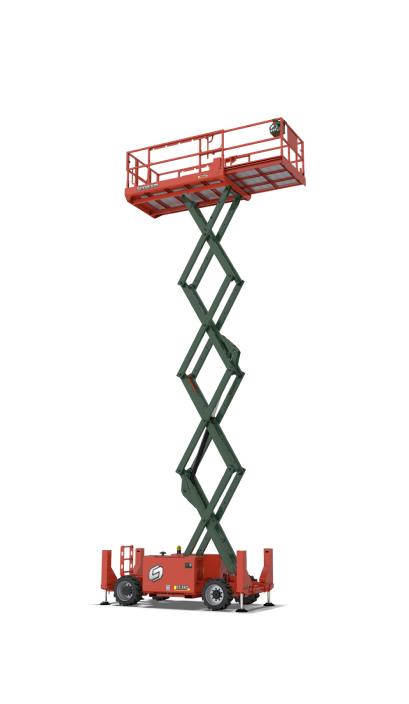

1018RD

Rough Terrain Scissor Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Product Highlights

  • Easy maintenance

    ■ Two-sided hatchback door design, for convenient maintenance
    ■ Swing-out engine compartment for easy maintenance

  • High efficiency

    ■ 1.6m(5'3") wide platform with one-way extension platform
    ■ One-click leveling, easy work on uneven road surfaces

  • Excellent performance

    ■ Up to 40% gradeability, easily handling outdoor needs
    ■ Stable movement, copes well with potholed ground
Dimensions

  • Max Working Height

    12m (39'4")

  • [A] Max Platform Height

    10m (32'10")

  • [B] Max Horizontal Extension

    1.5m

  • [C] Length-Stowed
    (Outriggers/Without Outriggers)

    3.8m / 3.19m

  • [D] Width-Stowed

    1.76m

  • Height - stowed (Rail Folded)

    1.94m

  • [E] Height - stowed
    (Rail Unfolded)

    2.56m

  • [F] Wheelbase

    2.28m

  • Ground Clearance

    0.22m

  • Platform Dimensions(L×W×H)

    2.8m×1.6m×1.1m
Performance

  • Platform Allowable Occupants
    (Indoor)

    4 persons

  • Platform Allowable Occupants
    (Outdoor)

    2 persons

  • Platform Capacity

    450kg

  • Drive Speed-Stowed

    5.6km/h

  • Drive Speed-Raised

    0.48km/h

  • Elevation Time
    (Unloaded)

    42s～52s

  • Descent Time
    (Unloaded)

    40s~50s

  • Gradeability

    35%

  • Turning Radius
    (Inside/Outside)

    2.11m / 4.6m

  • Tilt Rating
    (Front to Back)

    3°

  • Tilt Rating
    (Side to Side, Outrigger Tele-In/Tele-Out)

    2° / 0.8°

  • Max Outrigger Leveling
    (Front to Back)

    5.3° (front) / 4.2° (back)

  • Max Outrigger Leveling
    (Side to Side)

    11.7°

  • Tyres-solid

    26×12-16.5 (non-marking)
Power

  • Power Source

    Kubota D1105-E4B-EU-X1

  • Drive Mode

    4WD×2WS

  • Fuel Tank Capacity - Diesel

    48L

  • Hydraulic System Capacity

    72L


  • Weight
    (Outriggers/Without Outriggers)

    4,110 kg

  • Standards Compliance

    AS/NZS1418
Download Brochures
Standard features
  • 4 WD × 2 WS
  • Forklift pockets and lifting points
  • Proportional control
  • Tilt protection system
  • Foldable guardrail
  • Overload sensing system
  • Oscillating axle
  • Drivable at full height
  • Telematics-ready connector
  • Non-marking tires
  • White noise alarm
Optional features
  • AC power to platform
  • Secondary guarding system
  • Lockable battery isolator
