1218RD
Rough Terrain Scissor Lifts
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS
Dimensions
-
Max Working Height
14.2 m (46'10.7") -

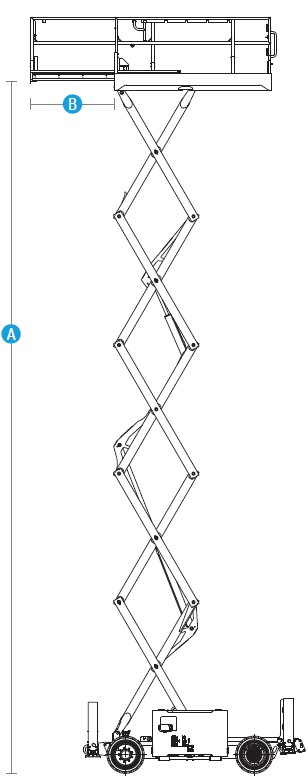

[A] Max Platform Height
12.2 m (40'0.3") -
[B] Max Horizontal Extension
1.5m -

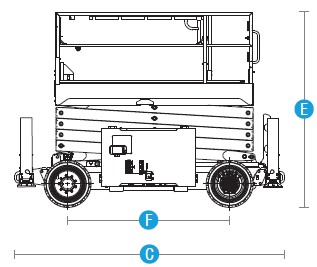

[C] Length-Stowed
(Outriggers/Without Outriggers)3.8 m / 3.19 m -

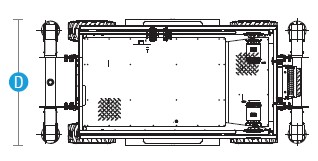

[D] Width-Stowed
1.78 m -
Height - stowed (Rail Folded)
2.1m -
[E] Height - stowed
(Rail Unfolded)2.73m -
[F] Wheelbase
2.28m -
Ground Clearance
0.22m -
Platform Dimensions(L×W×H)
2.8m×1.6m×1.1m
Performance
-
Platform Allowable Occupants
(Indoor)3 persons -
Platform Allowable Occupants
(Outdoor)2 persons -
Platform Capacity
450kg -
Drive Speed-Stowed
5.6km/h -
Drive Speed-Raised
0.48km/h -
Elevation Time
(Unloaded)55s～65s -
Descent Time
(Unloaded)50s～60s -
Gradeability
35% -
Turning Radius
(Inside/Outside)2.11m/4.6m -
Tilt Rating
(Front to Back)3° -
Tilt Rating
(Side to Side, Outrigger Tele-In/Tele-Out)2°/0.8° -
Max Outrigger Leveling
(Front to Back)5.3°(front)/4.2°(back) -
Max Outrigger Leveling
(Side to Side)11.7° -
Tyres-solid
26×12-16.5 (non-marking)
Power
-
Power Source
Kubota D1105-E4B-EU-X1 -
Drive Mode
4WD×2WS -
Fuel Tank Capacity - Diesel
48L -
Hydraulic System Capacity
72L
-
Weight
(Outriggers/Without Outriggers)5,180kg -
Standards Compliance
AS/NZS
Standard features
- 4 WD × 2 WS
- Forklift pockets and lifting points
- Proportional control
- Tilt protection system
- Foldable guardrail
- Overload sensing system
- Oscillating axle
- Drivable at full height
- Telematics-ready connector
- Non-marking tires
- White noise alarm
Optional features
- AC power to platform
- Secondary guarding system
- Lockable battery isolator
