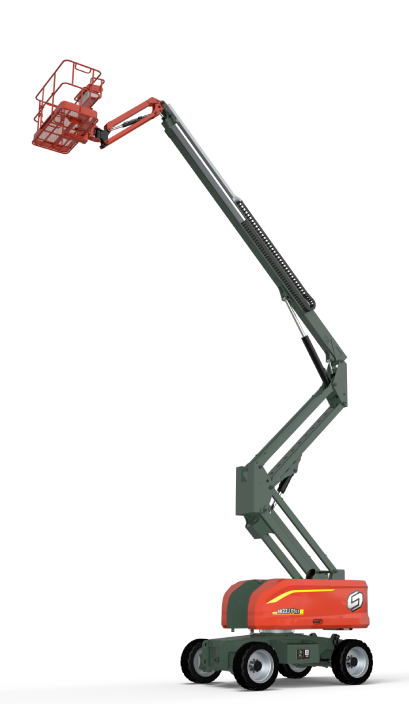

AB22J Plus
ENGINE POWERED ARTICULATING BOOM LIFTS
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS
Dimensions
-

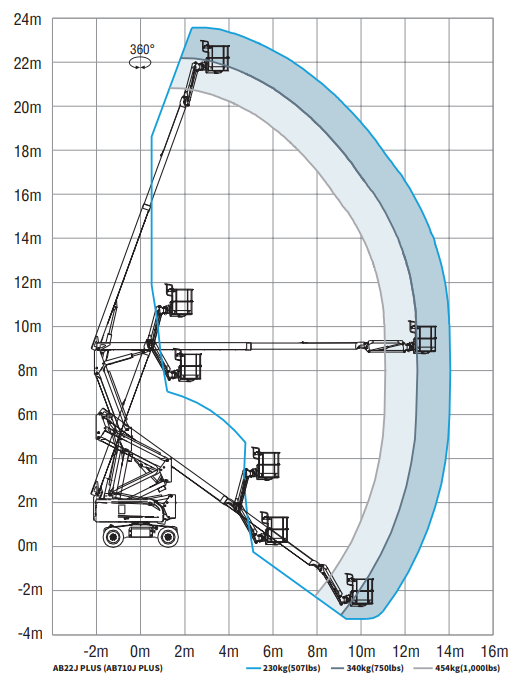

Max Platform Height
21.6 m -
Max Working Height
23.6 m -
Max Horizontal Extension
13.35 m/11.85 m/10.4 m
(230 kg/340 kg/454 kg) -

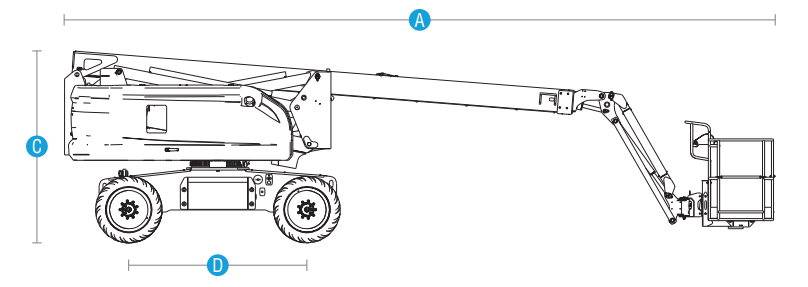

[A] Length-Stowed
9.95 m -

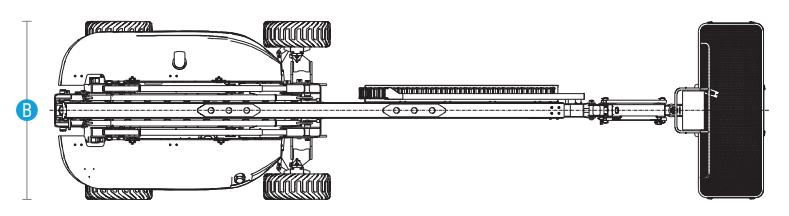

[B] Width-Stowed
2.49 m -
[C] Height-Stowed
2.68 m -
[D] Wheelbase
2.49 m -
Ground Clearance
0.42 m -
Platform Dimensions(L×W×H)
2.44 m × 0.91 m × 1.1 m
Performance
-
Platform Capacity
(Unrestricted/2 Persons)454 kg/340 kg /230 kg
(Restricted/ Restricted /Unrestricted) -
Turntable Rotation
360°/Continuous -
Platform Rotation
180° -
Drive Speed-Stowed
0～4.8 km/h -
Drive Speed-Raised
0～1.1km/h -
Gradeability
40% -
Turning Radius-Inside
2.4 m/ 1.63 m
(Two-wheel steering / Four-wheel steering) -
Turning Radius-Outside
5.55 m/ 3.59 m
(Two-wheel steering / Four-wheel steering) -
Turntable Tailswing
0.89 m -
Tilt Rating
5° -
Max Operating Noise Level
- -
Drive×Steer
4WDx2WS (4WS) -
Tyres Spec/Type
355/55D625 (foam-filled)
36×14-20 (solid)
Power
-
Power source(optional)
36.4 kW /2200 rpm/D2.9 L4 / Deutz /EU Stage Ⅴ/EPA Tier 4F |36 kW/2200 rpm/ F2.8CS449 / Cummins / China T4 |43 kW/2500 rpm/QSF2.8T3NA60 / Cummins / China T3、EU Stage 3A (More options in specification sheet) -
Auxiliary Power Unit
12 V DC -
Fuel Tank Capacity-Diesel
100 L (22.0 gal (UK)/26.4 gal (US)) -
Hydraulic Tank Capacity
130 L (28.6 gal (UK)/34.3 gal (US))
-
Weight
11,880 kg/12,000 kg
(Two/Four-wheel steering) -
Standards Compliance
CE/EAC/AS
Standard features
- Active oscillating function
- Four-wheel brake
- 7-in smart screen
- Continuous turntable rotation in 360°
- Automotive sleeves for all pipes
- Fault diagnosis system
- Hydraulic leveling for platform
- Platform rotation function
- Weighing system
- Tilt protection system
- Max allowable tilt angle at 5°
- Rear position and travel confirmation
- Rotating warning light for safety warning
- Horn and buzzer for safety warning
- Voice broadcast
- Emergency stop system
- Emergency lowering system
- Mechanical release for travel braking
- Proportional control with 3 joysticks
- Platform with inward swinging gate (2.44×0.91×1.1 m)
- Four-wheel steering
- Anti-pinch device
- Manual storage box
- Tool box(for platform with inward swinging gate)
- AC power line to the platform
Optional features
- Telematics-ready connector
- Solid tire
- Non-marking tire
- Working light on the platform
- Anti-collision device
- Hydraulic generator
- Glass bracket(for platform with inward swinging gate)
- Half-height guardrail (for platform with inward swinging gate)
- Anemometer
