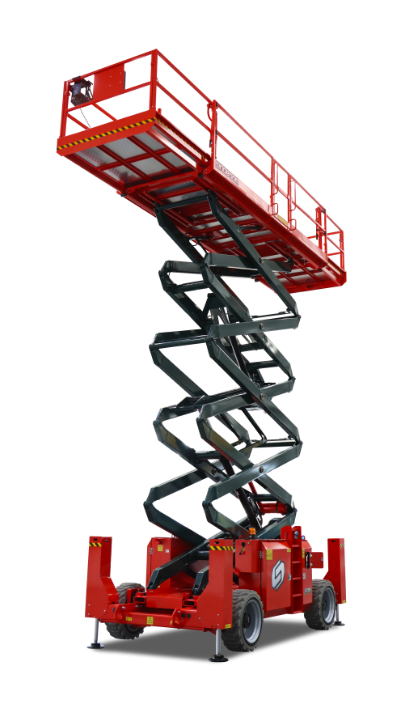

1623RE
Rough Terrain Scissor Lifts
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS
Dimensions
-
Max Working Height
18.2m (59'8.5") -
[A] Max Platform Height
16.2m (53'2") -
[B] Max Horizontal Extension
1.5m/1.2m -
[C] Length-Stowed
(Outriggers/Without Outriggers)4.88m -
[D] Width-Stowed
2.28m -
Height - stowed (Rail Folded)
2.44m -
[E] Height - stowed
(Rail Unfolded)3.21m -
[F] Wheelbase
2.84m -
Ground Clearance
0.36m -
Platform Dimensions(L×W×H)
3.96m×1.82m×1.1m
Performance
-
Platform Allowable Occupants
(Indoor)4 Persons -
Platform Allowable Occupants
(Outdoor)4 Persons -
Platform Capacity
680kg -
Drive Speed-Stowed
5.3km/h -
Drive Speed-Raised
1.1km/h -
Elevation Time
(Unloaded)70s~90s -
Descent Time
(Unloaded)60s~70s -
Gradeability
40% -
Turning Radius
(Inside/Outside)2.2m/5.3m -
Tilt Rating
(Front to Back)3° -
Tilt Rating
(Side to Side, Outrigger Tele-In/Tele-Out)2°/0.8° -
Max Outrigger Leveling
(Front to Back)7° -
Max Outrigger Leveling
(Side to Side)12° -
Tyres-solid
33x12-20
Power
-
Power Source
48 V, 480 Ah -
Drive Mode
12V DC -
Fuel Tank Capacity - Diesel
- -
Hydraulic System Capacity
110L
-
Weight
(Outriggers/Without Outriggers)9,250kg -
Standards Compliance
-
Standard features
- 4 WD × 2 WS
- Forklift pockets and lifting points
- Proportional control
- Tilt protection system
- Foldable guardrail
- Overload sensing system
- Oscillating axle
- Telematics-ready connector
- Non-marking tires
- Pipe-rack ready
- White noise alarm
Optional features
- AC power to platform
- Secondary guarding system
- Lockable battery isolator
- Lithium battery
- Pipe rack
